FS cable repair system can fix cable damages such as:
Cable coating cracks, UV damage, Oil, Mud, Water, or Mechanical Damage on cables.
We can repair damaged cables to upgrade your cables fire technical and insulation properties.
We offer cable repair and application with our FS5 cable coating to vital electrical cables running through high-risk areas. This eliminates the need to change or reroute cables. Not only will our cable coating systems repair existing damage, but also prevent future damage to your cable jackets. Our cable coating system is unique: it can repair damaged cables and offer fire protection in one operation. Failing to repair damaged cables can leave your ship, rig or industrial plant seriously impaired.

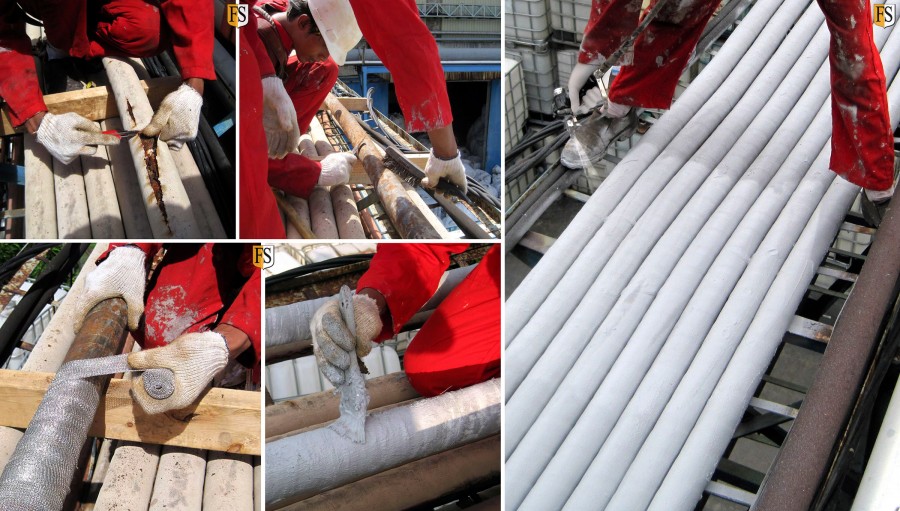

This is how we do cable restoration when the outer sheath is damaged:
This is the process Fire Security use to repair damaged cables and make them fire resistant with the use of our FS 5 cable coating:
- Remove damaged outer sheath.
- Clean cables.
- Apply linerless rubber tape to all damaged cables.
- Apply a thick layer of coating, then a fiber mesh for additional
- Let the coating dry and cure for 24 hours.
- Apply a second layer of FS-5 coating.
- After another 24 hours rest, apply the last layer FS coating.
- Cable repair finished.
This is how we do cable restoration when the cable screen is damaged:
1. Repair the outer damage.
When damage has occurred to the outer sheath and the cable screen, the latter is repaired using a metal shielding tape.
2. Restore the insulation.
The procedure is completed by application of the FS5 cable coating and a supporting fibre mesh. The coating will restore the insulation.
3. Fire protection.
The repaired cable is placed on the cable tray and sprayed with another layer of FS 5 that will fully restore the strength of the cable and add fire protection.
Cable restoration by Fire Security has benefits like cost savings, damage prevention and fire protection.
LV to HV cable coating repair and rejuvenation.
Fire Security industrial cable coating is designed to quickly repair damaged or brittle LV to HV cables without shutdown or loss of production in the offshore and marine, oil and gas, power generation / distribution and heavy industry sectors. We pride ourselves on zero business interruption as we efficiently find a solution to repairing your industrial cables cracks and leaks.
After manually rebuilding the damaged sheaths and restoring insulation and mechanical integrity with our FS5 coating system, your industrial cable is repaired and protected against both fire and environmental stress. Your rejuvenated cables are ready to continue their operation with a warranty backed application.
Cable upgrade benefits:
Your cables will comply with international qualification standards.
An upgrade eliminates the need for large-scale cable replacements at a high cost.
An investment in cable upgrade is an investment in the security of your operation and in the prevention of unexpected future costs.
Cable repair, cable lifetime extension and fire protection in one turnkey solution.
FS5 coating system will extend the life of your cables by:
Repairing cables that have suffered damage to the outer sheath.
Making cables resistant to water, oil, mud and damaging chemicals.
Making cables resistant to UV radiation.
Improving the insulation property of the cables.
Cable Repair – Customer Testimonials
Life Extension and fireproofing of Cargo Electrical Cables on 8 ships for ADNATCO.
This letter has been issued to Fire Security Middle East, Ajman, UAE, in recognition for their technical contribution and outstanding works carried out to improve the condition of the electrical cabling protection for cargo system on-board ADNATCO NGSCO LNG fleet vessels.
FS5 repair and coating system was applied on live electrical cables, and intrusive repairs on expansion joints were carried out in the following areas:
Deck level main cable trays, manifold areas, compressor house.
Cleaning, repairing and coating old cables, 1.000 meters of electrical cable trays.
About 1.000 cables, associated with controls, lighting, communications and other services, were contaminated throughout a number of locations outside the gas compression and power generation modules.
Fire Security was contracted to do the work and it was carried out with no disruption to production operations and without any electrical isolation.
The solution was far less expensive than changing out the cables and resulted in no production downtime.
This is to confirm that the HV cables used in Quatar Shell Pearl GTL with outer sheath HDPE which had shown cracks, have been repaired by coating with FS5 in a very professional way, maintaining the specified quality and to a very high safety standard.
The cables affected where 33, 11 and 6.6kV around 100 circuits where coated wherever the cables are not underground.
The work was completed in December 2012 and we are satisfied with Fire Security coating system.
